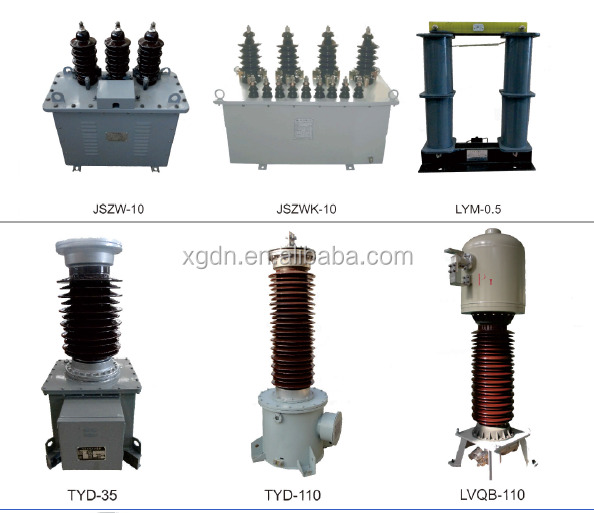

12/42/75kv Rated Insulation Level Oil Type CT PT Metering Unit for Accurate Power Measurement

Product Description:

The CT PT Metering Unit is a versatile device designed for accurate measurement and monitoring of electrical parameters in power systems. With options available for Accuracy Classes of 0.2, 0.5, 1.0, and 3.0, this unit provides reliable and precise data for various applications.

Featuring a Rated Insulation Level of 12/42/75kV, the CT PT Metering Unit ensures safe operation even in high-voltage environments. This high insulation level protects the unit and the connected equipment from electrical faults and ensures long-term durability.

The CT PT Metering Unit is suitable for systems operating at both 50Hz and 60Hz frequencies, offering flexibility for use in different regions and grid configurations. Its compatibility with both frequency standards makes it a versatile choice for a wide range of applications.

With a Voltage Class of 10kV, the CT PT Metering Unit is capable of handling high voltage levels commonly found in industrial and utility settings. This makes it an ideal solution for metering and monitoring electrical parameters in medium to high voltage power systems.

Equipped with an Insulation Level of up to 12kV, the CT PT Metering Unit provides enhanced safety and reliability in demanding electrical environments. This high insulation capability ensures protection against voltage surges and transient events, safeguarding the unit and the connected infrastructure.

Features:

• Product Name: CT PT Metering Unit
• Type: Oil Type
• Measurement Type: Current Transformer (CT) And Potential Transformer (PT)
• Frequency: 50Hz/60Hz
• Coil Structure: TOROIDAL
• Certifications: CE, ISO9001, RoHS

Technical Parameters:

Applications:

The CT PT Metering Unit is a versatile product that can be used in a variety of applications due to its high level of protection with an IP65 rating. Its design is suitable for voltage classes up to 10kv, making it ideal for a range of electrical systems. With a rated voltage of up to 1000V, this unit is well-equipped to handle diverse power distribution scenarios.

One key feature of the CT PT Metering Unit is its oil type construction, which ensures reliable performance and longevity in demanding environments. This type of design is especially beneficial in applications where exposure to harsh conditions or contaminants is a concern.

The CT PT Metering Unit is available in various accuracy classes including Class 0.2, 0.5, 1.0, and 3.0, allowing for precise measurement and monitoring of electrical parameters. This level of accuracy is essential in critical operations where precise data is required for effective decision-making.

Product Application Occasions and Scenarios:

• Industrial Settings: The CT PT Metering Unit is well-suited for use in industrial facilities where accurate measurement of electrical parameters is essential for operational efficiency and safety.
• Power Plants: With its high voltage class capabilities, the unit can be deployed in power plants for monitoring and metering purposes, ensuring reliable performance in demanding power generation environments.
• Renewable Energy Systems: The CT PT Metering Unit is an ideal choice for renewable energy systems such as solar or wind farms, where precise measurement of power output is crucial for optimizing energy production.
• Commercial Buildings: In commercial settings, the unit can be used for metering electricity consumption, helping building owners and managers track energy usage and identify opportunities for efficiency improvements.

Customization:

Product Customization Services for the CT PT Metering Unit:

Accuracy Class: Class 0.2, 0.5, 1.0, 3.0

Certifications: CE, ISO9001, RoHS

Measurement Type: Current Transformer (CT) And Potential Transformer (PT)

Display Type: LCD/LED

Voltage Class: 10kv

Support and Services:

The CT PT Metering Unit product offers comprehensive Product Technical Support and Services to ensure optimal performance and reliability. Our team of experts is available to assist with installation, configuration, troubleshooting, and maintenance of the unit. We provide regular software updates, user training, and documentation to keep your system up-to-date and running smoothly.

Packing and Shipping:

Product Packaging for CT PT Metering Unit:

The CT PT Metering Unit is carefully packaged to ensure safe delivery to our customers. Each unit is wrapped in protective materials to prevent damage during transit.

Shipping Information:

We offer worldwide shipping for the CT PT Metering Unit. Orders are typically processed and shipped within 1-2 business days. Customers can choose their preferred shipping method during checkout.

FAQ:

Q: What is a CT PT Metering Unit?

A: A CT PT Metering Unit is a device used for measuring and monitoring electrical currents and voltages in power systems.

Q: What are the key features of the CT PT Metering Unit?

A: The key features of the CT PT Metering Unit include accurate measurements, compact design, easy installation, and compatibility with various power systems.

Q: How does the CT PT Metering Unit work?

A: The CT PT Metering Unit works by connecting to current transformers (CTs) and potential transformers (PTs) to accurately measure electrical parameters such as current and voltage.

Q: What are the applications of the CT PT Metering Unit?

A: The CT PT Metering Unit is commonly used in industries, commercial buildings, substations, and utility systems for energy management, billing, and monitoring purposes.

Q: Is the CT PT Metering Unit easy to maintain?

A: Yes, the CT PT Metering Unit is designed for easy maintenance, with features such as modular components and diagnostic capabilities for quick troubleshooting.
