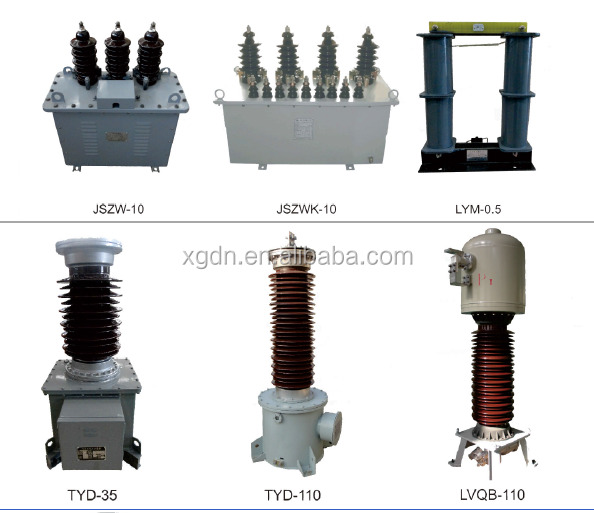

RoHS Certified Oil Type CT PT Metering Unit for Precise Power Measurement and Monitoring

Product Description:

The CT PT Metering Unit is a versatile product designed for accurate measurement and protection of current and voltage in various electrical systems. This unit is specifically categorized as an Oil Type metering unit, which ensures reliable performance and durability in different operating conditions.

One of the key features of the CT PT Metering Unit is its TOROIDAL coil structure. This design enhances the efficiency and precision of current and voltage measurements, making it ideal for both industrial and commercial applications. The toroidal coil structure also contributes to the unit's compact size and ease of installation.

With a frequency compatibility of 50Hz/60Hz, the CT PT Metering Unit can adapt to different power systems without any compromise in accuracy. This flexibility enables seamless integration into a wide range of electrical setups, providing consistent and reliable performance across various environments.

For seamless data communication and monitoring, the CT PT Metering Unit supports the Modbus RTU/RS485 communication protocol. This feature allows for easy connectivity with other devices and systems, enabling efficient data exchange and remote monitoring capabilities. The Modbus RTU/RS485 protocol ensures compatibility with modern automation systems, enhancing the overall functionality of the unit.

The primary usage of the CT PT Metering Unit is current and voltage protection. By accurately measuring and monitoring electrical parameters, this unit helps safeguard equipment and systems from potential damage due to overload or voltage fluctuations. The precise measurements provided by the CT PT Metering Unit enable timely intervention and preventive maintenance, ensuring the continuous and reliable operation of electrical systems.

In conclusion, the CT PT Metering Unit is a reliable and efficient solution for current and voltage measurement and protection. With its oil type construction, toroidal coil structure, frequency compatibility, and communication protocol support, this unit offers a comprehensive solution for various electrical applications. Whether used in industrial plants, commercial buildings, or utility substations, the CT PT Metering Unit delivers accurate measurements and reliable protection, making it an essential component in modern electrical systems.

Features:

• Product Name: CT PT Metering Unit
• Certifications: CE, ISO9001, RoHS
• Accuracy Class: Class 0.2, 0.5, 1.0, 3.0
• Measurement Type: Current Transformer (CT) And Potential Transformer (PT)
• Rated Voltage: Up To 1000V
• Temperature Range: -25°C To +55°C

Technical Parameters:

Applications:

The CT PT Metering Unit is a versatile product that can be used in various application occasions and scenarios due to its advanced features and reliable performance.

With a toroidal coil structure, this unit is designed to provide accurate and efficient metering capabilities in a wide range of environments. Whether it is used in industrial settings, commercial buildings, or residential complexes, the CT PT Metering Unit ensures precise measurement and monitoring of electrical parameters.

Having obtained certifications such as CE, ISO9001, and RoHS, this product guarantees compliance with international quality and safety standards, giving users peace of mind regarding its reliability and durability.

The display type of the CT PT Metering Unit can be either LCD or LED, offering users flexibility in choosing the most suitable option based on their preferences and requirements. The clear and easy-to-read display ensures that data can be easily monitored and interpreted.

With a temperature range of -25°C to +55°C, the CT PT Metering Unit is suitable for use in both extreme cold and hot climates, making it a dependable choice for various environmental conditions.

Capable of handling rated voltages of up to 1000V, this unit is ideal for applications where high voltage levels are present, providing accurate measurements and reliable performance under demanding conditions.

Overall, the CT PT Metering Unit is a versatile and robust product that can be utilized in a wide range of scenarios, offering accurate metering capabilities, compliance with international standards, flexible display options, wide temperature tolerance, and high voltage handling capacity.

Customization:

Product Customization Services for the CT PT Metering Unit:

Rated Voltage: Up To 1000V

Voltage Class: 10kv

Measurement Type: Current Transformer (CT) And Potential Transformer (PT)

Coil Structure: TOROIDAL

Communication Protocol: Modbus RTU/RS485

Support and Services:

The CT PT Metering Unit product comes with comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our technical support team is available to assist with any product-related queries, troubleshooting, or issues that may arise. Additionally, we offer maintenance services to keep your unit functioning at its best and provide regular updates and training to keep you informed on the latest advancements and best practices. Rest assured, our team is dedicated to delivering top-notch support and services to meet your needs.

Packing and Shipping:

Product Name: CT PT Metering Unit

Description: Our CT PT Metering Unit is a high-quality device designed for accurate measurement and monitoring of electricity usage.

Package Includes: CT PT Metering Unit, User Manual, Installation Guide

Shipping Information: We offer free shipping for all orders within the United States. For international orders, shipping charges will apply.

FAQ:

Q: What is a CT PT Metering Unit?

A: A CT PT Metering Unit is a device used for metering and monitoring electrical energy in a power system. It consists of current transformers (CTs), potential transformers (PTs), and associated metering equipment.

Q: What are the key components of a CT PT Metering Unit?

A: The key components of a CT PT Metering Unit include CTs, PTs, metering devices (such as energy meters), terminal blocks, wiring connections, and protective enclosures.

Q: How does a CT PT Metering Unit work?

A: CTs measure the current flowing through a circuit, while PTs measure the voltage. The metering devices use these measurements to calculate energy consumption. The unit ensures accurate measurement and monitoring of electrical parameters.

Q: What are the benefits of using a CT PT Metering Unit?

A: Using a CT PT Metering Unit provides accurate measurement of electrical parameters, helps in energy management, enables billing based on actual consumption, facilitates fault detection, and ensures compliance with regulatory requirements.

Q: How to install and maintain a CT PT Metering Unit?

A: Installation of a CT PT Metering Unit should be done by qualified personnel following manufacturer's guidelines. Regular maintenance includes checking connections, calibrating meters, ensuring proper insulation, and conducting periodic testing for accuracy.
